Pure Copper Woven Wire Mesh Weave Brass Screen 1M Bronze Gutter
Guards
Copper Woven Wire Mesh Introduction:
Woven copper mesh is similar to a cloth with wire threads woven at
right angles. Our plain weave copper cloth is flimsy and easy to
cut by common scissors. It has an unpolished surface. Confirming to
ASTM E2016-06.
Apart from high conductivity, nonmagnetic feature and corrosive
resistance, copper cloth is also easy to be welded to form a rigid
sheet with uniform opening size. With opening size from 0.006 inch
to 0.075inch, copper cloth is very usable as a strainer or a sieve.
Copper Woven Wire Mesh specifications:
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) | Open Area % |
| 4 | 1.2 | 5.15 | 65.8 |
| 5 | 1 | 4.08 | 64.5 |
| 6 | 0.71 | 3.52 | 69.2 |
| 8 | 0.5 | 2.67 | 70.7 |
| 10 | 0.5 | 2.04 | 64.5 |
| 12 | 0.45 | 1.66 | 61.5 |
| 14 | 0.4 | 1.41 | 60.4 |
| 16 | 0.3 | 1.28 | 65 |
| 18 | 0.25 | 1.16 | 67.6 |
| 20 | 0.25 | 1.02 | 64.5 |
| 30 | 0.21 | 0.64 | 57.1 |
| 40 | 0.19 | 0.45 | 50.2 |
| 50 | 0.15 | 0.36 | 50.1 |
| 60 | 0.15 | 0.27 | 40.7 |
| 70 | 0.13 | 0.232 | 40.8 |
| 80 | 0.12 | 0.197 | 39 |
| 90 | 0.11 | 0.172 | 37.2 |
| 100 | 0.1 | 0.154 | 37 |
| 110 | 0.09 | 0.141 | 37.2 |
| 120 | 0.09 | 0.122 | 33.2 |
| 130 | 0.07 | 0.125 | 41 |
| 140 | 0.07 | 0.111 | 37.6 |
| 150 | 0.06 | 0.109 | 41.5 |
| 160 | 0.06 | 0.098 | 38.1 |
| 180 | 0.053 | 0.088 | 41.6 |
| 200 | 0.05 | 0.077 | 36.7 |
| (width of roll): 0.60m-2.9m |
Copper mesh series products are available in copper wire mesh,
bronze wire mesh, and brass wire mesh. They look similar in
appearance and color. Due to the different composition of metal
materials, each product has different characteristics and use
effects.
Copper Woven Wire Mesh Features & Use:
Soft, easily soldered
Ductile and malleable
Excellent thermal and electrical conductivity
99%+ pure copper
Not only used in the electrical industry. Copper wire mesh is also
popular in the field of architectural decoration due to its unique
color and flexible and weldable characteristics.
Homeowners and designers choose copper wire mesh for residential
projects such as gutter guards, insect screens, fireplace screens,
or decorative wall panels. Artists, including sculptors,
woodworkers, metal artisans, and architects prefer copper mesh due
to its ability to form complex shapes.
Copper Woven Wire Mesh Packaging & Delivery:

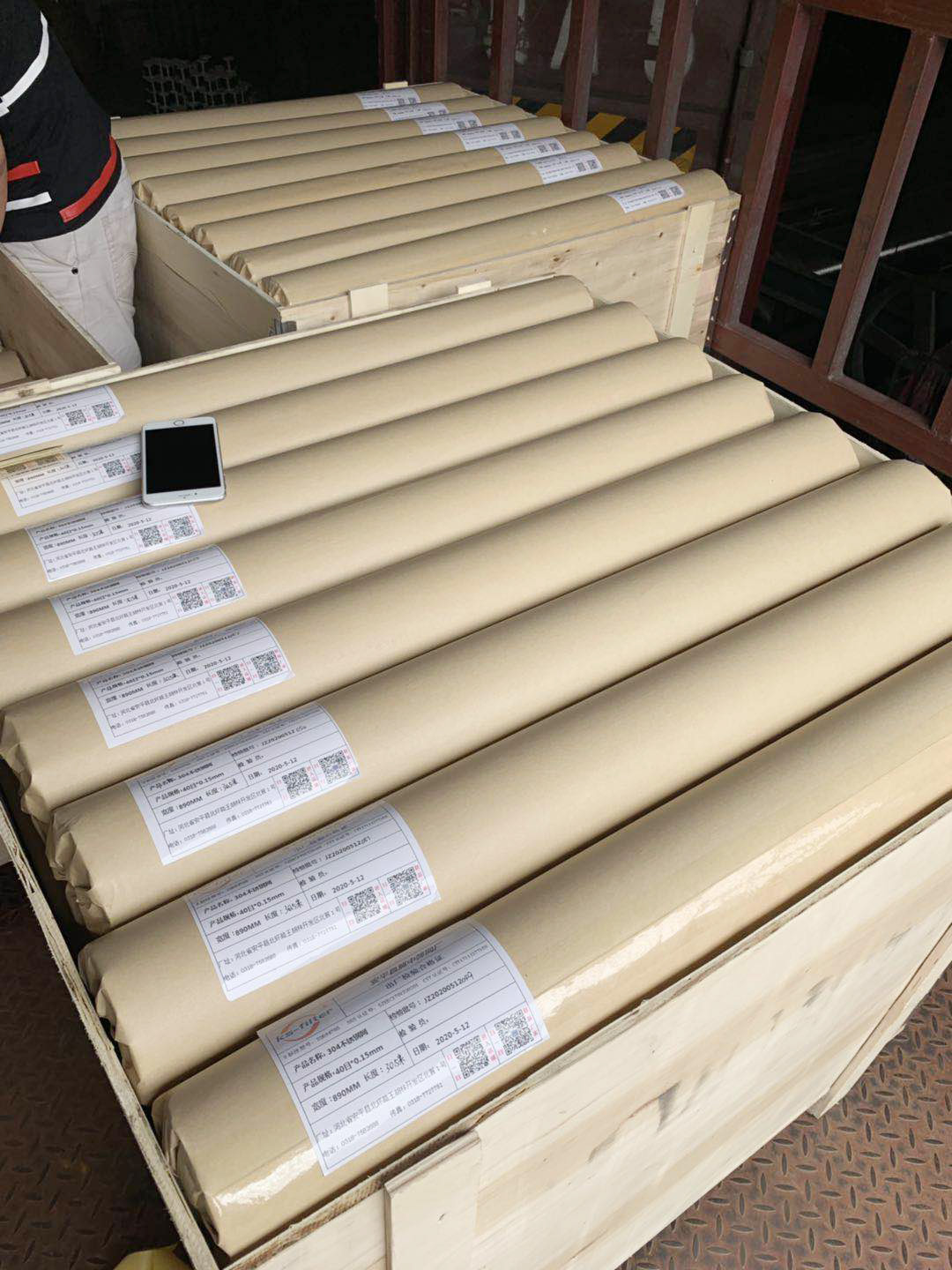

- Packaging Details: Mesh rolled on paper pipe, then waterproof paper
inside, plastic cloth outside the roll.
- Port: TIANJIN PORT, XINGANG PORT, SHANGHAI PORT , QINGDAO PORT
- Lead Time:
| Quantity(Square Meters) | 1 - 200 | >200 |
| Est. Time(days) | 15 | To be negotiated |
Our company:
Kangshuo Wire Mesh Manufactore Co., Ltd is located in Hebei, has
its own factory which is located in Anping ---- China's silk
screen. So far has more than 20 years of production experience. We
specializing in the production of metal mesh filter products, such
as coffee filters, homemade beer filter barrels, hookah or tobacco
pipe screens and other metal mesh products are our main products.
With years of export experience along with excellent quality,
advanced services and competitive prices, Kingnod has won numerous
customers' trust and support.
Welcome to consult if there is any requirement in our products.
